Inverter Daya Gelombang Sinus Murni, 300W 12V/24V/48V Dc Ke Ac 110V/230V

  • 1 - 99
    $26.10
  • 100 - 499
    $25.30
  • >=500
    $23.30
Output daya:
Tegangan input:
Tegangan output:
Sampel:
, ,
$50.00 / | 1 (Min. Order) | Beli Sampel
Waktu Pemenuhan Pesanan::
Kuantitas() 1 - 100 >100
Estimasi Waktu (hari) 7 Bisa Dinegosiasikan
Kustomisasi:
Pengemasan kustom (Min. Order: 100 )
Kustomisasi grafis (Min. Order: 100 )

Lainnya

Logo kustom (Min. Order: 100 ) Lebih Sedikit
laporan Aktivitas Yang Mencurigakan
ikhtisar
Rincian cepat
Tempat asal:
Zhejiang, China
Nama merek:
JYINS
Nomor model:
JYP-300W-C
Jenis:
Inverter DC/AC
Jenis output:
Single, Dua, Rangkap Tiga, QUAD, Banyak
Arus keluaran:
according to load
Frekuensi output:
50/60Hz ±3
Ukuran:
186x106x63 mm
Berat:
695g
OEM:
Accepted
Peak power:
300W
Certificate:
CE&ROHS
Color:
Silver
Shell material:
Aluminium alloy
Warranty:
12 months
Package:
Paper skin carton
Wave from:
Pure sine wave
Type:
DC/AC inverters
Working temperature:
-10°- +50°
Kemampuan pasokan
Kemampuan pasokan:
10000 Piece/Pieces per Month
Pengemasan & Pengiriman
Rincian Kemasan

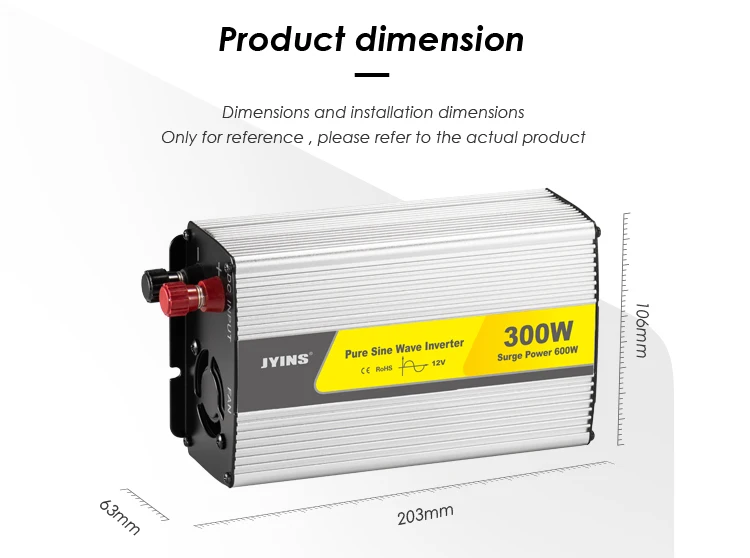

Dimensi (mm) 186x106x63mm
Kemasan (mm) 235x143.5x82mm
Net/berat kotor (g) 695/920g
QTY/Ctn 30 Pcs
Pengukuran/Ctn(mm) 635x330x355mm
Berat kotor/Ctn(g) 27800g
Pelabuhan
FOB Ningbo / Shanghai
Waktu Pemenuhan Pesanan: :
Kuantitas(Pieces) 1 - 100 >100
Estimasi Waktu (hari) 7 Dapat dinegosiasikan
300W 12v/24v/48v dc to ac 110v/230v pure sine wave power inverter
Product Description
Product Paramenters
Model
JYP-0.3K-1
JYP-0.3K-1
JYP-0.3K-1
JYP-0.3K-2
JYP-0.3K-2
JYP-0.3K-2
Rated power
300W
Peak power
600W
Input voltage
DC12V
DC24V
DC48V
DC12V
DC24V
DC48V
Output voltage
100VAC or 110VAC or 120VAC±5%
220VAC or 230VAC or 240VAC±5%
Unload current less than
0.3A
0.2A
0.2A
0.3A
0.2A
0.2A
Output frequency
50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform
Pure Sine Wave
Waveform distortion
THD<3%(Linear load)

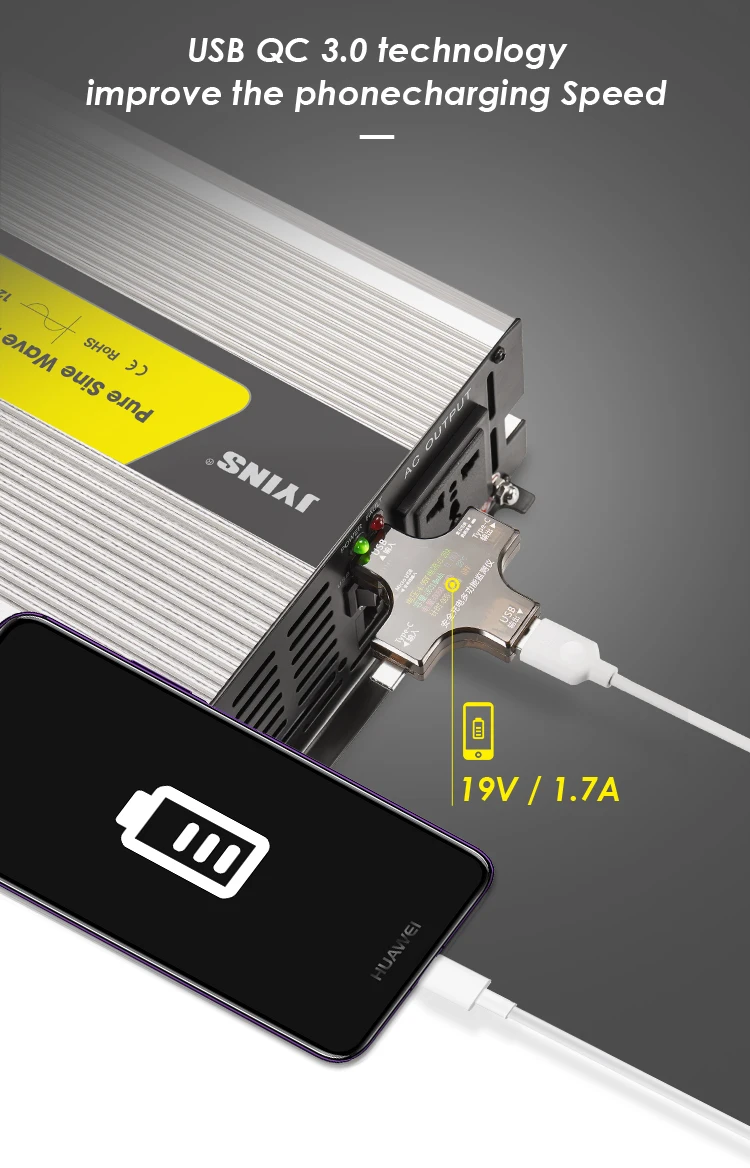

USB port
5V 1A
Max.efficiency
90%
Storage temperature
-30°- +70°
Configuration
Standard
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product
Certifications
Time-honored quality, Security guarantee.
We gain more and more recognition from users by high quality. meanwhile our products have passed several testing Certifications and have relevant certifications.
Company Introduction
Factory direct sales Support OEM/ODM
Our company have research and development center for new product, management department for strict quality control.we continuously launch new products which occupying the international and domestic markets. we deeply favored by customers because of the satisfied products and service. Our products are exported to Southeast Asia, Europe, North America, Australia, and countries from Middle East and other regions and gain a high reputation in international market. For more information,Welcome to the field trip.



Strict Factory Test, Two Years Warranty

Our Team and Philosophy Always Work with Passion
Welcome to contact us anytime!
FAQ
1,Q:Why your quotation is higher than other suppliers?
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
..............................................................................................................................................................
2,Q:How many categories does it have according to the output waveform ?
A:Type one: JYM Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.
      Type two: JYP Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution.
..............................................................................................................................................................
3,Q:Is the output voltage of our inverter stable ?
A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.
..............................................................................................................................................................
4,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................
5,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
..............................................................................................................................................................
6,Q:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
